Hot-dip galvanized earthing plates, also called GI plates, are steel plates coated in a thick layer of zinc for corrosion resistance in electrical grounding systems. These plates are preferred for their durability, long-term effectiveness, and ease of installation, providing crucial safety and infrastructure protection. They come in standard and custom sizes, with thicknesses varying to suit different needs

Price: 0 | Payment Type: AssuredPurchase | Available: True | COD Available: False | KYC Status:

Galvanized Channels can be used to create any construction connections, e.g. facades, precast concrete construction, residential construction and traffic engineering (e.g. tunnels), and for lift constructions, infrastructure projects such as bridges or crane runway fixings, Switchyard structures SPECIFICATIONS: 75 x 40MM 100 x 50MM 125 x 65MM 150 x 75MM 200 x 75MM 250 x 80MM 300 x 90MM 400 x 100MM

Price: 0 | Payment Type: AssuredPurchase | Available: True | COD Available: False | KYC Status:

Galvanized angles has very widely use with tower, communication tower, railway and highway protection, lamp posts, Marine structures, construction steel structure component, ancillary facilities of substation, light industry, etc. SPECIFICATIONS: 5 x 25 x 3MM 25 x 25 x 5MM 32 x 32 x 3MM 35 x 35 x 5MM 37 x 37 x 3MM 40 x 40 x 5MM 40 x 40 x 6MM 50 x 50 x 5MM 50 x 50 x 6MM 65 x 65 x 6MM 75 x 75 x 6MM 75 x 75 x 8MM 75 x 75 x 10MM 90 x 90 x 10MM 100 x 100 x 10MM 130 x 130 x 10MM 150 x 150 x 16MM 150 x 150 x 20MM

Price: 0 | Payment Type: AssuredPurchase | Available: True | COD Available: False | KYC Status:

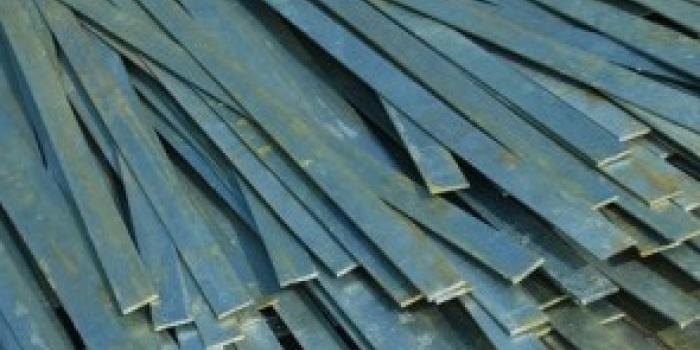

Galvanized earthing strip is connected to the actual earthing bar. In some places GI Earthing Strips are used instead of insulated cables due to lower cost or deter thefts. GI Flats results in the required minimum earthing resistance to meet your installation requiements SPECIFICATIONS 20 x 3MM 25 x 3MM 25 x 5MM 25 x 6MM 32 x 5MM 32 x 6MM 40 x 3MM 40 x 5MM 40 x 6MM 50 x 3MM 50 x 5MM 50 x 6MM 50 x 8MM 50 x 10MM 50 x 12MM 63 x 6MM 63 x 8MM 63 x 10MM 75 x 6MM 75 x 8MM 75 x 10MM 75 x 12MM 100 x 6MM 100 x 8MM 125 x 6MM 150 x 6MM

Price: 0 | Payment Type: AssuredPurchase | Available: True | COD Available: False | KYC Status:

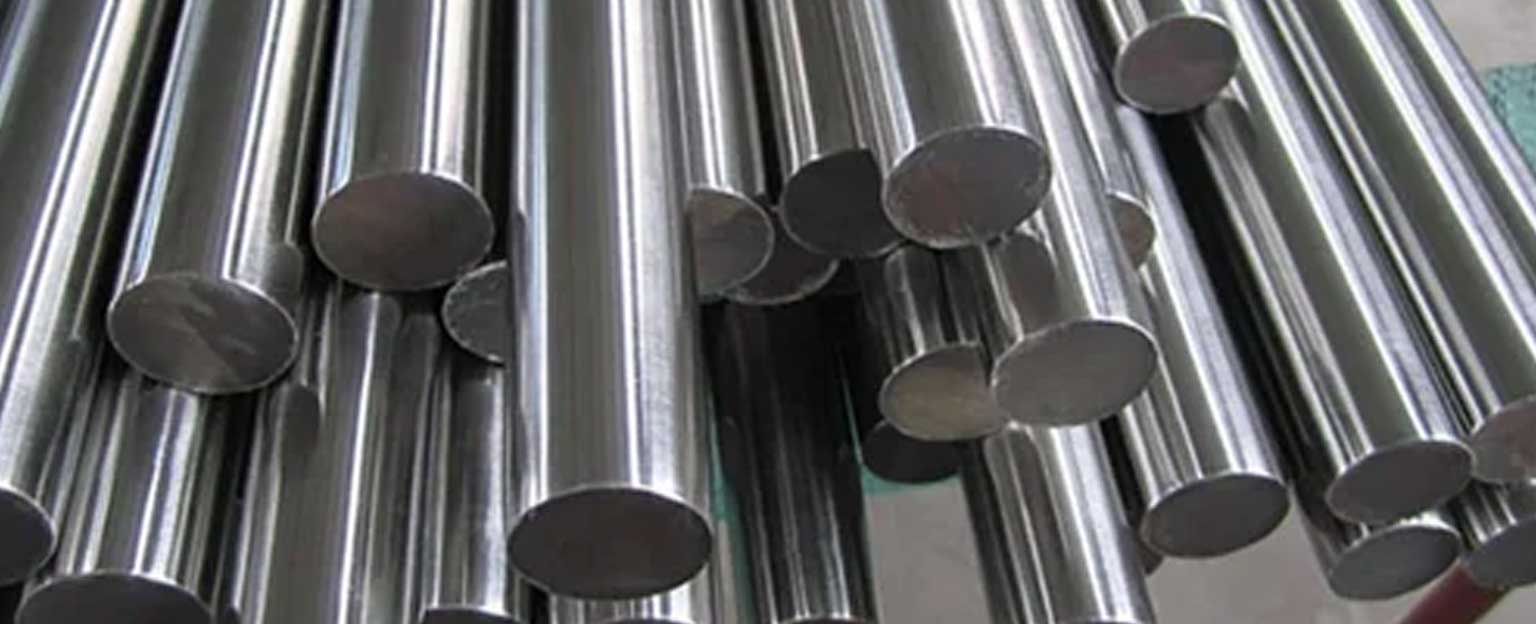

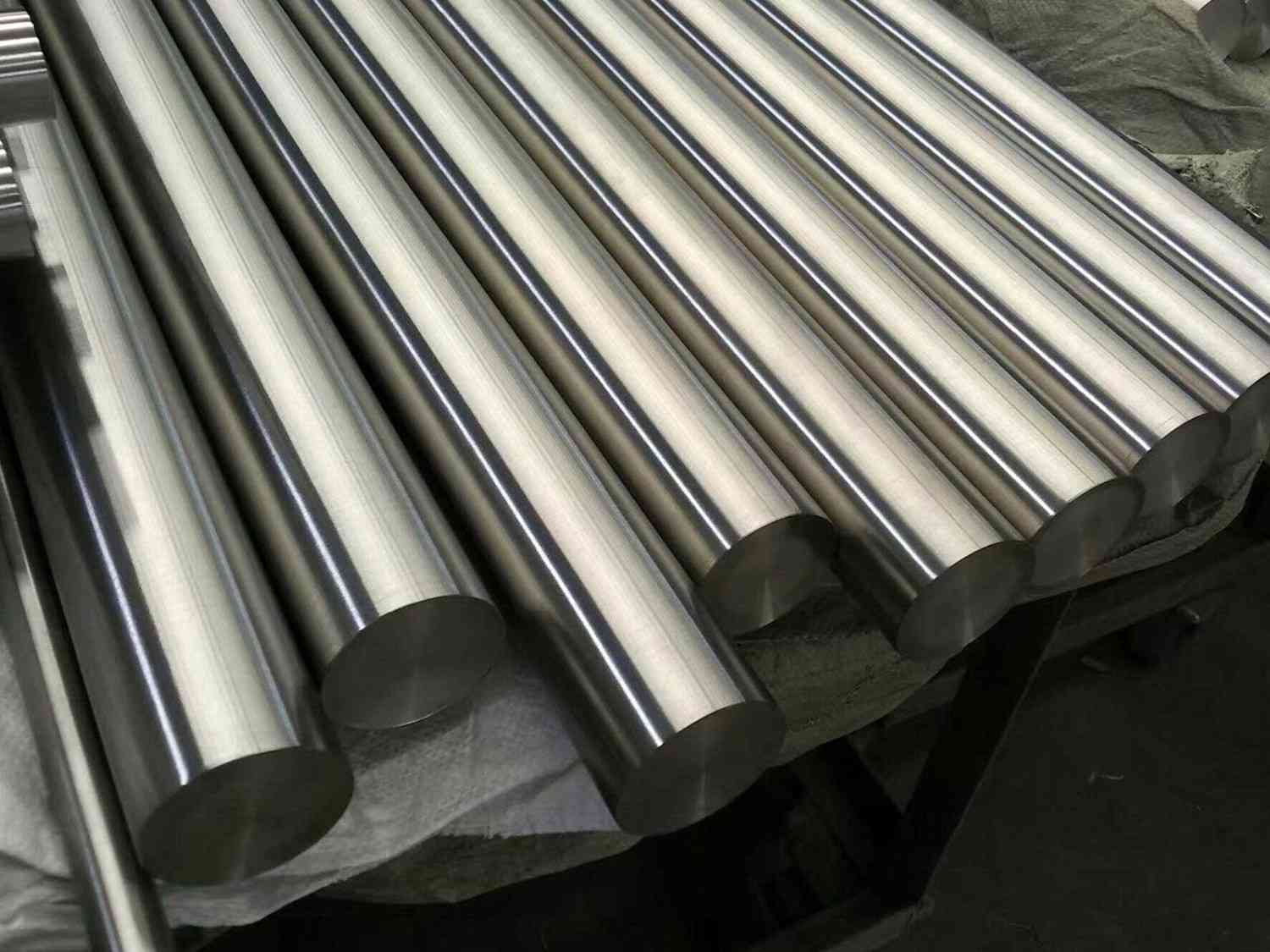

Stainless Steel 304 Round Bar, SS 304 Bar Supplier in MumbaiAn SS 304 round bar is a steel rod made from Grade 304 stainless steel, a common alloy known for its high corrosion resistance and strength, due to its composition of approximately 18% chromium and 8% nickel. These bars are used in applications requiring durability and resistance to high temperatures and pressures, such as construction, industrial manufacturing, and DIY projects. They are available in various dimensions, finishes like bright or polished, and lengths, with pricing often dependent on the bar's thickness.

Price: 0 | Payment Type: AssuredPurchase | Available: True | COD Available: False | KYC Status:

SS 316L is an austenitic, low-carbon stainless steel with a specified chemical composition including 16-18% Chromium, 10-14% Nickel, and 2-3% Molybdenum. Key properties include a low-carbon content, which provides enhanced resistance to intergranular corrosion after welding, good mechanical strength (e.g., 170 MPa yield strength, 485 MPa tensile strength), and excellent corrosion resistance, particularly in chloride-containing environments Finish : No.1 finish hot rolled, Hot rolled plate (HR), 2B, 2D, BA NO (8), No.4, BA, , Cold rolled sheet (CR), etc.

Price: 0 | Payment Type: AssuredPurchase | Available: True | COD Available: False | KYC Status:

SS316 is an austenitic stainless steel grade specified by its chemical composition, which includes chromium, nickel, and molybdenum, and mechanical properties like tensile strength, yield strength, and hardness. Key specifications include a composition of approximately 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, which provides superior corrosion resistance to chlorides compared to SS304. Standard mechanical properties, such as a minimum tensile strength of 515 MPa and a minimum 0.2% yield strength of 205 MPa for annealed plate, are defined by standards like ASTM A240. Chemical Composition (Typical Ranges): Chromium (Cr): 16.0 - 18.0% Nickel (Ni): 10.0 - 14.0% Molybdenum (Mo): 2.0 - 3.0% Carbon (C): ≤ 0.08% Manganese (Mn): ≤ 2.0% Silicon (Si): ≤ 0.75% Phosphorus (P): ≤ 0.045% Sulfur (S): ≤ 0.03% Iron (Fe): Balance Mechanical Properties (Annealed Plate - ASTM A240/ASME SA-240): Minimum Ultimate Tensile Strength (UTS): ≥ 515 MPa (75 ksi) Minimum 0.2% Yield Strength (YS): ≥ 205 MPa (30 ksi) Minimum Elongation (in 2 inches): ≥ 40% Maximum Hardness (Rockwell B): ≤ 95 (HRB) Key Characteristics and Benefits: Enhanced Corrosion Resistance: The addition of molybdenum significantly improves resistance to pitting and crevice corrosion, especially in chloride environments and seawater. Improved High-Temperature Strength: SS316 offers better strength and creep resistance at elevated temperatures than SS304. Cryogenic Toughness: The alloy maintains excellent toughness at sub-zero temperatures. Applications: Widely used in food processing, pharmaceutical equipment, marine environments, surgical implants, and industrial processes involving corrosive chemicals. Standard Specification References: ASTM A240 / ASME SA-240: A primary standard for the chemical and mechanical requirements of SS316 in plate, sheet, and strip forms. UNS S31600: The Unified Numbering System designation for SS316. “A4“ in “SS 316 sheets plates and sheets“ is a code used to specify the quality and type of stainless steel used. “A4“ specifically refers to the Austenitic class of stainless steel and the number “316“ indicates the specific alloy type within the Austenitic class. In this case, 316 is a type of stainless steel that is widely used for applications requiring good corrosion resistance and strength, such as for marine and chemical environments. Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8)

Price: 0 | Payment Type: AssuredPurchase | Available: True | COD Available: False | KYC Status:

Stainless steel 304L is a low-carbon (max 0.03%) version of the standard 304 grade, primarily used for welded and heavy-gauge applications to prevent carbide precipitation and corrosion around welds. It features a minimum of 18% chromium and 8% nickel, offering excellent corrosion resistance in atmospheric, chemical, and food industries. Key specifications include a maximum carbon content of 0.03%, 17.5-19.5% chromium, and 8-12% nickel. The Stainless Steel 304L Sheets/ Plates have excellent weldability which is done at all standard fusion methods. The welding can be done with or without the use of filler metals. Abhay steels produce polished plates, hot rolled, cold rolled, coils, strips, foils, shim sheet, chequered, perforated and circle sheet using this grade. We use grades that have dual certification which is common for both 304 and 304L. The certificates specify the grade having all chemical and mechanical properties. The finished Stainless Steel 304L Sheets/ Plates also receive certificates such as third party inspection, EN 10204/3.1B, and radiography test report. Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8)

Price: 0 | Payment Type: AssuredPurchase | Available: True | COD Available: False | KYC Status:

SS 304 sheet specifications include its standard as ASTM A240 / ASME SA240, a chemical composition of approximately 18% Chromium (Cr), 8% Nickel (Ni), with low carbon (max 0.08%), and other elements like Manganese (Mn), Phosphorus (P), Sulfur (S), Silicon (Si), and Nitrogen (N). Mechanical properties typically show a minimum yield strength of 205 MPa and a minimum tensile strength of 515 MPa. Sheets are available in various standard sizes, thicknesses (e.g., 0.1mm to 12mm), forms (like coils, plates, foils), and finishes (e.g., 2B, 2D, BA, Satin) Surface : the surface and finish of stainless steel 304 Sheet/Plate: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, etc It is widely used in a variety of commercial applications, including: Sinks, pots, pans, cutlery, and so on are examples of kitchen equipment. Conveyors, mixing tanks, and other food processing equipment. Chemical processing: tanks, heat exchangers, piping, and so on. Facades, examples of architecture. Pharmaceutical equipment, storage tanks, and so on. 304 stainless steel plate or sheets is a popular choice for many industries due to its resistance to corrosion and staining, low maintenance requirements, and sleek appearance.

Price: 0 | Payment Type: AssuredPurchase | Available: True | COD Available: False | KYC Status:

SS S20100 Sheets, Stainless Steel 202 Sheets, 202 Stainless Steel Plates, Stainless Steel 202 Sheets Supplier, SS 202 Plates, Stainless Steel 202 Shim Sheets, ASTM A240 Stainless Steel 202 Plates, Stainless Steel 1.4372 Sheets, 202 Stainless Steel Plate Stockist in Mumbai, India. Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) Industries We Serve Oil and Gas Pipeline | Chemical Industry | Plumbing | Water Supply Systems | Power Plant | Paper & Pulp Industry | General Purpose Applications | Fabrication Industry | Food Processing Industry | Structural Pipe

Price: 0 | Payment Type: AssuredPurchase | Available: True | COD Available: False | KYC Status:

Boiler quality plate specifications define the material standards (like ASTM A516), which dictate specific chemical composition, including elements like carbon, manganese, and sulfur, and required mechanical properties, such as high tensile and yield strength, and excellent toughness and weldability. These plates also come in varying thicknesses, widths, and lengths to suit different boiler and pressure vessel designs and applications, emphasizing their ability to withstand high temperatures, pressures, and corrosive environments.

Price: 0 | Payment Type: AssuredPurchase | Available: True | COD Available: False | KYC Status:
